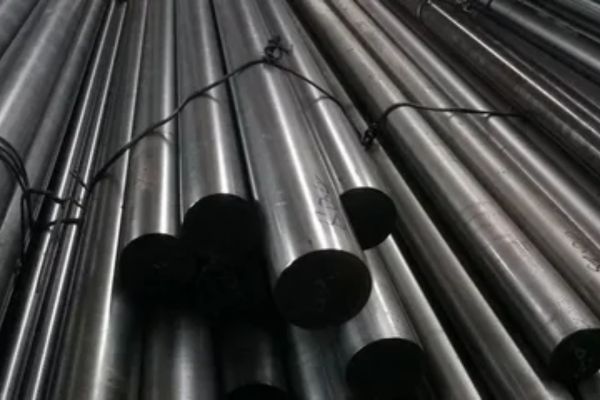

Thabiso Steel stands out as a top manufacturer and supplier of Carbon Steel EN Series Bars right in Cape Town, South Africa. We offer a wide array of high-quality carbon and alloy steel bars that are crafted for strength, precision, and durability. Our EN Series Bars are specifically designed to meet the rigorous demands of the automotive, engineering, and heavy industrial sectors. At Thabiso Steel, we pride ourselves on maintaining superior manufacturing standards, ensuring dimensional accuracy, and delivering consistent mechanical performance. This means you can count on our materials for excellent machinability, toughness, and wear resistance across various industrial applications.
Our Carbon Steel EN Series Bars are made with carefully controlled amounts of carbon, manganese, silicon, chromium, nickel, and molybdenum, tailored to the specific EN grade (like EN8, EN9, EN19, EN24, EN31, EN36, etc.). These elements work together to enhance mechanical properties such as tensile strength, hardness, and fatigue resistance. Typically, the bars boast tensile strengths ranging from 600 to 1000 MPa, along with outstanding heat-treatability, machinability, and toughness, making them perfect for critical engineering and automotive components.
| Specifications | : | ASTM A105, ASME SA105 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel EN Series Round Bars | : | 3.0 – 50.8 mm, Over 50.8 – 300mm |

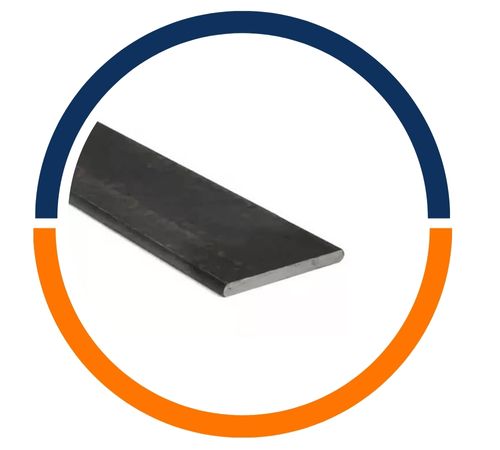

| Carbon Steel EN Series Rectangular Bars | : | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Carbon Steel EN Series Hex Bars | : | AF5.8mm–17mm |

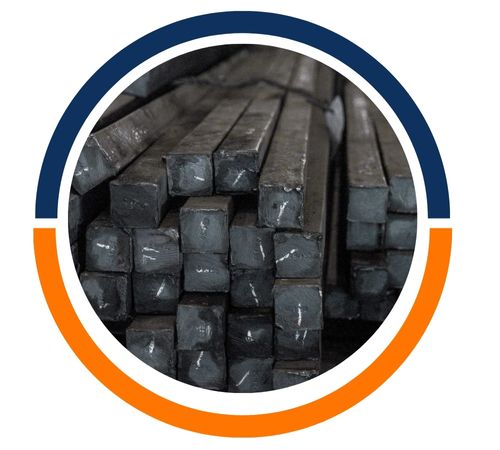

| Carbon Steel EN Series Square Bars | : | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |

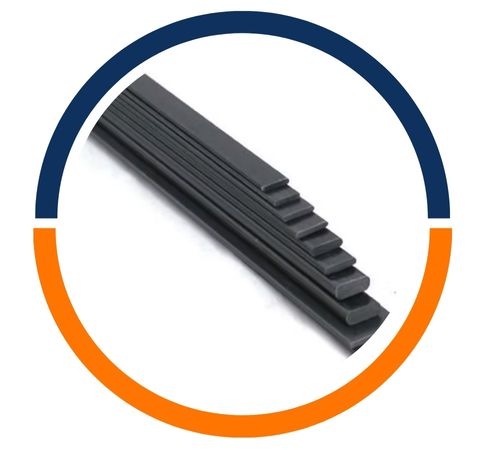

| Carbon Steel EN Series Flat Bars | : | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | : | Bright, Polish & Black |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| rade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN Series Bars in Cape Town, South Africa. We specialize in premium steel products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability, and performance in critical industrial applications.
| Size Chart | Chucked true to Outer diameter | Chucked true to Inner Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OD, Milimeter | ID, Milimeter | Max. OD, Milimeter | Min. ID, Milimeter | Max. OD, Inch | Min. ID, Inch | Max. OD, Milimeter | Min. ID, Milimeter | Max. OD, Inch | Min. ID, Inch |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
You’ll find Carbon Steel EN Series Bars being widely utilized in industries like automotive, construction, defense, manufacturing, and machinery. They’re ideal for crafting components such as shafts, gears, axles, crankshafts, spindles, and fasteners that demand exceptional mechanical strength and wear resistance. The versatility, durability, and high performance of our EN Series Bars make them the go-to choice for industries looking for reliable carbon steel solutions, whether for general use or high-stress engineering applications.
